Billing Printer

Model

EC58

Printing Method

Thermal line printing

Print Font

9x17 / 12x24, Hanji Font: 24x24, Thai Font: 9x24 / 12x24

Character Size (W x H)

0.88x2.13mm / 1.25x3mm, Hanji Font: 3x3mm, Thai Font: 0.88x3mm / 1.25x3mm

Character Set

95 Alphanumeric, 18 set International, 128x43 pages (including user-defined page)

Hanzi: Simplified Chinese : GB18030-2000:28,553

Barcode: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODEBAR (NW-7), CODE93, CODE128, GS1-128, Gs1 DataBar

Characters Per Inch

22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font : 22.6cpi / 16.9cpi

Interface

USB, (Optional Interfaces : Serial RS232, Bluetooth, WiFi, GPRS)

Buffer

2048K bytes, NV Flash : 256K bytes

Print Speed

Max 120mm/s

Dot Density

208x208 dpi

Paper

Roll Paper (Width & Roll Diameter)

57.5 +/ 0.5 (W) x dia. 83.0

Power Supply Voltage

DC +12V+/- 5%

Power Consumption Operating

Approx. 3A (Mean/Print ratio 18% with print pattern)

Standby

Approx. 0.1A (Mean)

Cash drawer Power supply

DC12V1A

Reliability

Printer Mechanism Life

>100KM ( Print Density <12.5)

Auto Cutter

NA

Overall Dimensions (D xWx H)

185x115x130mm

Mass Approx.

0.6kg

Cash Drawer Integration

Yes Supported

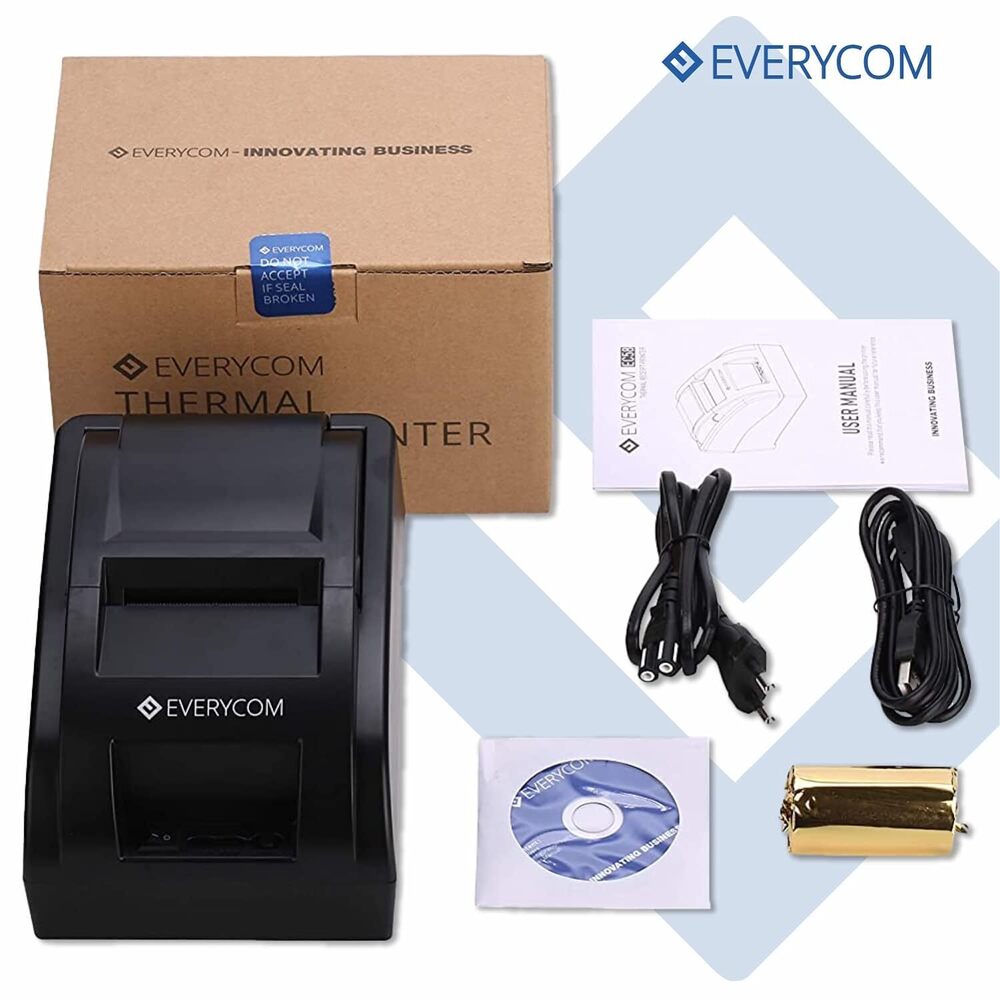

Standard Accessories

Included in the Package

Roll Paper x 1 (For checking the initial movement of the printer) CD-ROM (Drivers, Utility Software, Manuals)

Paper Bering, USB Cable

Installation

Horizontally
